Diamond TUYA Smart WIFI Cloud Security Alarm System works with Google Home/Amazon Alexa
DA-SSG-T30-TY SET - Diamond Smart WIFI cloud alarm system
This Second Generation TUYA T30 Smart Security System is easy to install, no monthly fee and no contract required. User can use free App to ARM, Monitor and DISARM the system from anywhere. The APP will alert all designed members with a Push Notifications when the system detects break-in or unauthorized activities and allows the user to monitor the home’s status and safety.

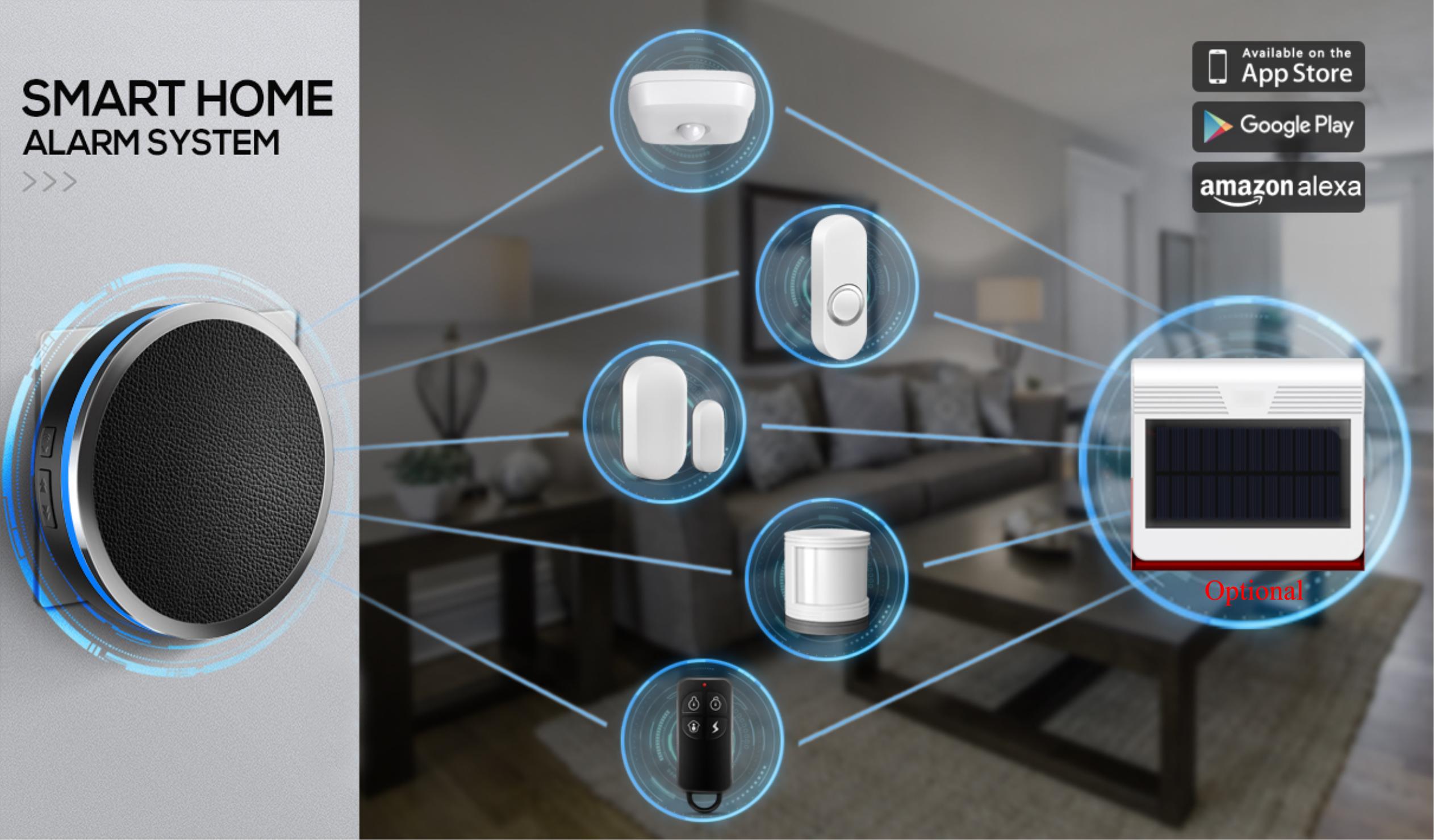

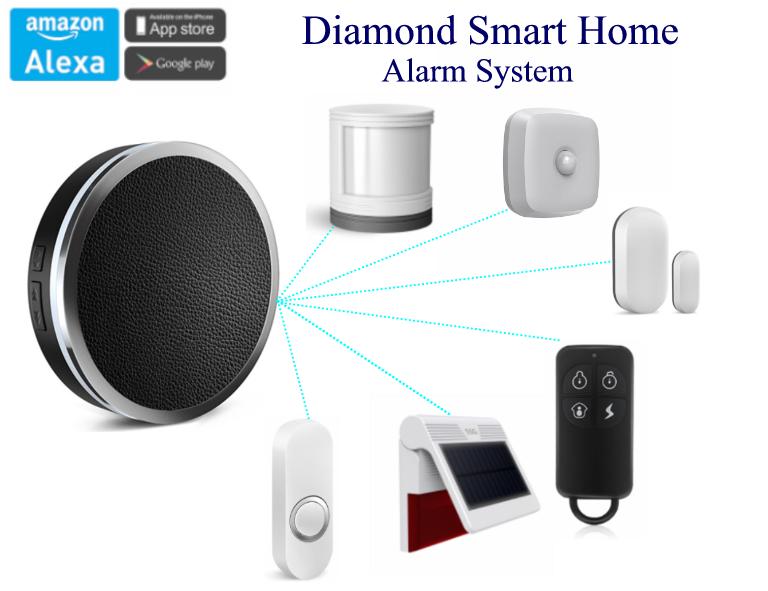

Packing list:
1 x WIFI gateway SSG-T30-TY
1 x PIR motion sensor SA-IR07-NWX03
1 x Remote Control SA-1168-RC03
1 x Contact Sensor SA-MC08-N04
1 x Waterproof Doorbell Button SA-1168-P3
1 x Ceiling Mounted Motion Sensor SSG-HP03
1 x Wireless Outdoor Solar Power Siren SA-1168-SW01
SSG-T30-TY - WIFI gateway SSG-T30
Main alarm gateway withBuilt-in strobe siren, 110 decibels of volume
Works with Amazon Alexa/Google Home(sold separately)
Supports up to 50 wireless accessories
WiFi range : 45m
Temp: -10℃~55℃
Op Freq: 315/433MHz
Power : AC100~240 V
Colour : Black
Material : ABS
Dim : 84*84*29mm
SA-MC08-N04 - Wireless Mini Magnetic Contact
Detect the open/close of the door/window
Wireless TX dist: ≤80m(open area)
Battery 3V DC(1*CR1632 battery)
Install gap: ≤1CM
Colour : White
Material : ABS
Dim : 34*12*44mm
SA-IR07-NWX03 - Wireless mini motion sensor
Detect the movement of human
Wireless TX dist: ≤80m(open area)
Battery:3V DC(1*CR2450 battery)
Detect distance:5M
Colour : White
Material : ABS
Dim : 33*32*38mm
SA-1168-RC03 - Remote Control
Easy to carry, 4 function keys
4 keys: Arm, Disarm, SOS, Home
Wireless TX dist: ≤80m(open area)
Battery:3V DC(1*CR2032 battery)
Colour : Black
Material : ABS
Dim : 30*11*71mm
<
SA-1168-P3 - Waterproof Doorbell Push Button
Letting you know you have a visitor even if you are away from home
Wireless TX dist: ≤200m(open area)
Battery: 3V DC(1*CR2032 battery)
Colour : White
Material : ABS
Dim : 31*17*86mm
SSG-HP03 - Ceiling Mounted Motion Sensor
Advanced motion sensor to detect human body moving signal to prevent false alarms
Wireless TX dis: ≥ 80 meters(in the open space
Battery: DC1.5V*2 AAA
Induction angle: 110 degrees
SA-1168-SW01 - Wireless Outdoor Solar Power Siren
The wireless solar siren will go off with the strobe light flashing when it received signal from connected alarm system.
(NOTE : You need to use the Remote Control SA-1168-RC03 ONLY to ARM and DISARM this Outdoor Siren)
